Chapter 2

TrafficStars

Track TrafficStars clicks, send it your conversions, and pull your spend.

This page shows you how to set up TrafficStars in Proferex: track its clicks, send it your conversions, and pull your ad spend automatically.

Apply the template

Go to Tracker → Traffic Sources, click Create Traffic Source, then Templates → TrafficStars. The template fills in everything below. You only need to change the parts marked You fill in.

If you set it up by hand instead, copy the tokens exactly as written, including the curly brackets.

Variable mappings

VariableURL parameterTrafficStars token
External IDexternalid{click_id}
Cost (CPC)cost{cost}
v1 Campaign IDcampaign_id{campaign_id}
v2 Creative IDcreative_id{creative_id}
v3 Spot IDadspot_id{adspot_id}
v4 Spot Nameadspot_name{adspot_name}
v5 Site IDsite_id{site_id}
v6 Site Hostsite_host{site_host}
v7 Categorycategory{category}
v8 Keywordskeywords{keywords}
v9 Referrerreferrer{referrer}
v10 Device Typedevice_type{device_type}

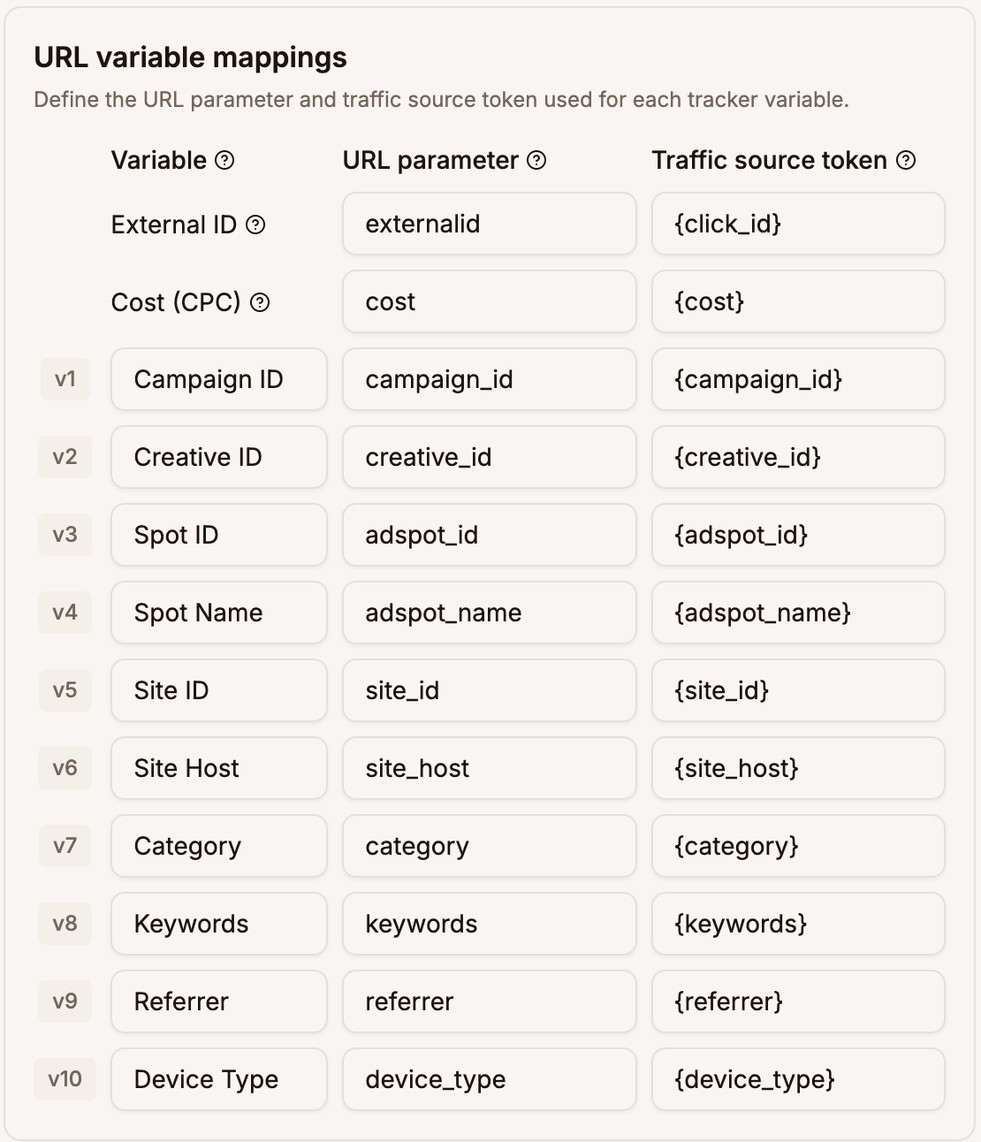

The URL variable mappings filled in by the TrafficStars template, from External ID with click_id and Cost (CPC) with cost to v10 Device Type
The TrafficStars template fills in every row

For Cost (CPC), use {cost}, which is what TrafficStars actually charged for the click. Don't use {price}, which is your bid and can be higher.

Postback URL

The template fills in this address:

https://tsyndicate.com/api/v1/cpa/action?key=YOUR_SECRET_KEY&clickid={externalid}&goalid=0&value={payout}

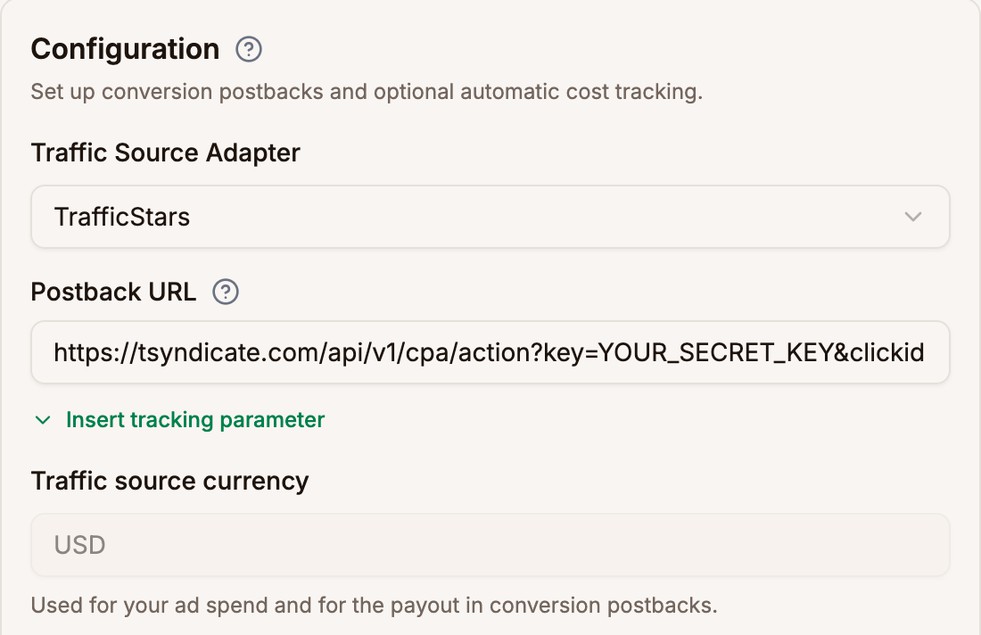

The TrafficStars adapter selected, its postback URL with YOUR_SECRET_KEY, and the Traffic source currency set to USD
Replace YOUR_SECRET_KEY with your own key

You fill in: replace YOUR_SECRET_KEY with the secret key from Tracking & API in your TrafficStars account. Leave the rest as it is.

Cost sync

The template sets Traffic Source Adapter to TrafficStars.

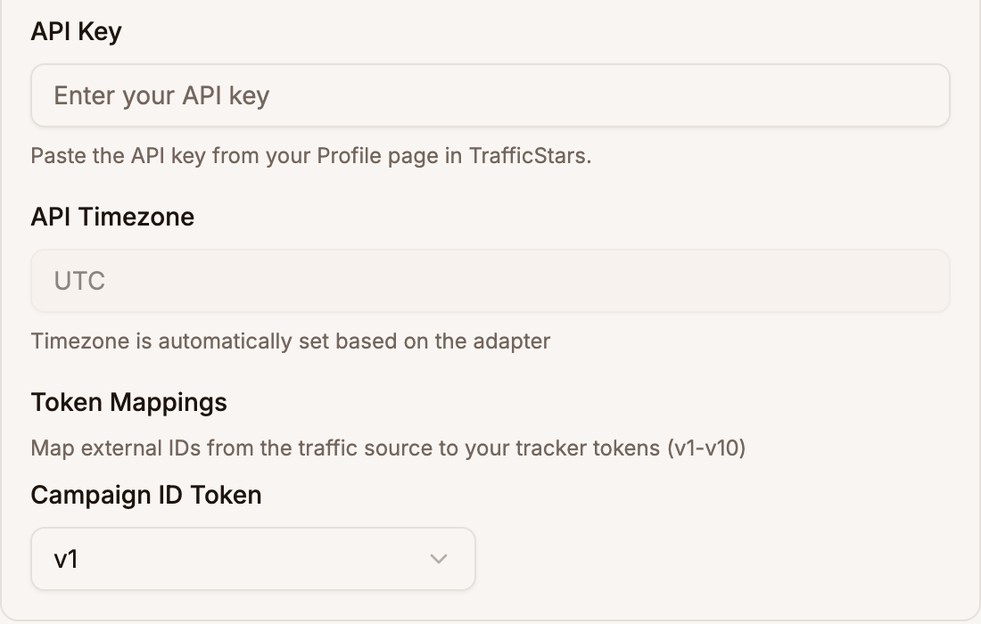

The TrafficStars API Key field, API Timezone set to UTC, and Campaign ID Token set to v1
Paste your API key. The rest is set for you
  • You fill in: paste your API key from the Profile page in TrafficStars into API Key.
  • API Timezone is UTC, the timezone TrafficStars reports spend in. You cannot change it.
  • Traffic source currency is USD, the currency TrafficStars reports in.
  • Campaign ID Token is v1, the row that carries {campaign_id}. Keep it that way, or cost sync cannot match spend to your clicks.

Don't want cost sync? Set Traffic Source Adapter to None (Manual Cost Tracking) and leave the API key empty. Everything else keeps working, and each click's cost comes from the Cost (CPC) row instead. See Costs.

Control the campaign from Proferex

Once cost sync is set up, click API at the top of a TrafficStars campaign's page in Proferex.

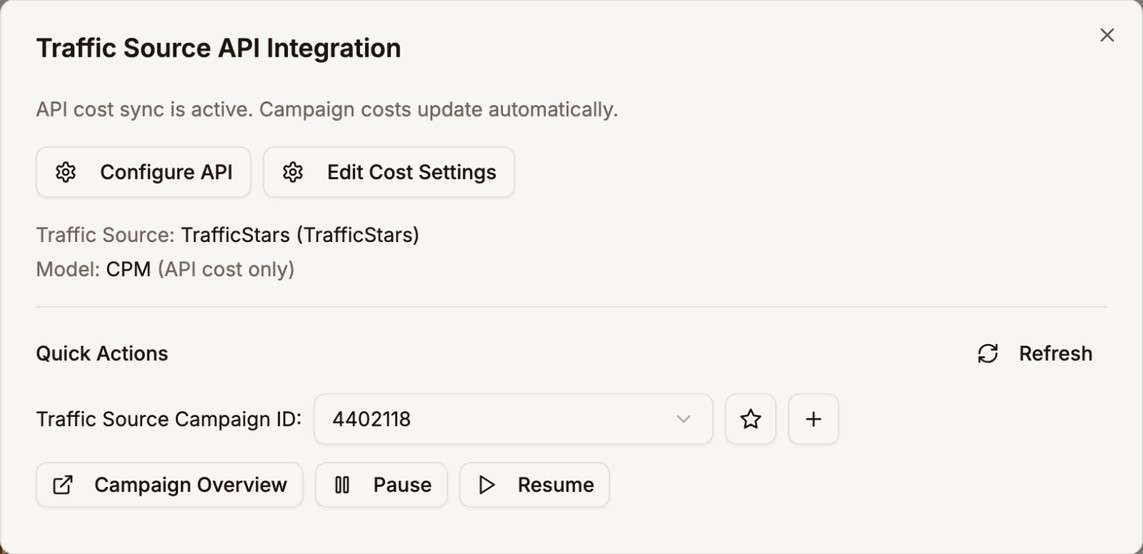

The Traffic Source API Integration window for TrafficStars, with cost sync active, the CPM model, the traffic source campaign ID 4402118, and the Campaign Overview, Pause, and Resume buttons
Pause and resume the campaign at TrafficStars
  1. Under Traffic Source Campaign ID, pick the TrafficStars campaign. Proferex lists the IDs it has seen in {campaign_id} on this campaign's visits.
  2. Click a button:
    • Campaign Overview opens the campaign's settings in TrafficStars, where you can block spots.
    • Pause and Resume pause and restart the campaign straight away.

To find the spots to block, group the campaign by V3, the spot ID. See Campaign Reports.

Next step

Save the traffic source, then create a campaign with it. See Campaigns.
